Our company is one of the largest private tractor manufacturers in China Our company has an annual productive ability of 150 series tractors. 2WD and 4WD, from 25HP to 55HP. 150 series of tractors have the best quality in China.
Product Description:
120hp 4wd China agriculture manufacturer price farming tractors for sale
This model 120hp 4wd tractor sells very well for its good quality and cheap price.
We export this model tractors most to Europe, America, Australia and Brizil and other countries, they are very popular in the market.
With beautiful appearance, this tractor is also multi-functional. It can match all kinds of farming implements.

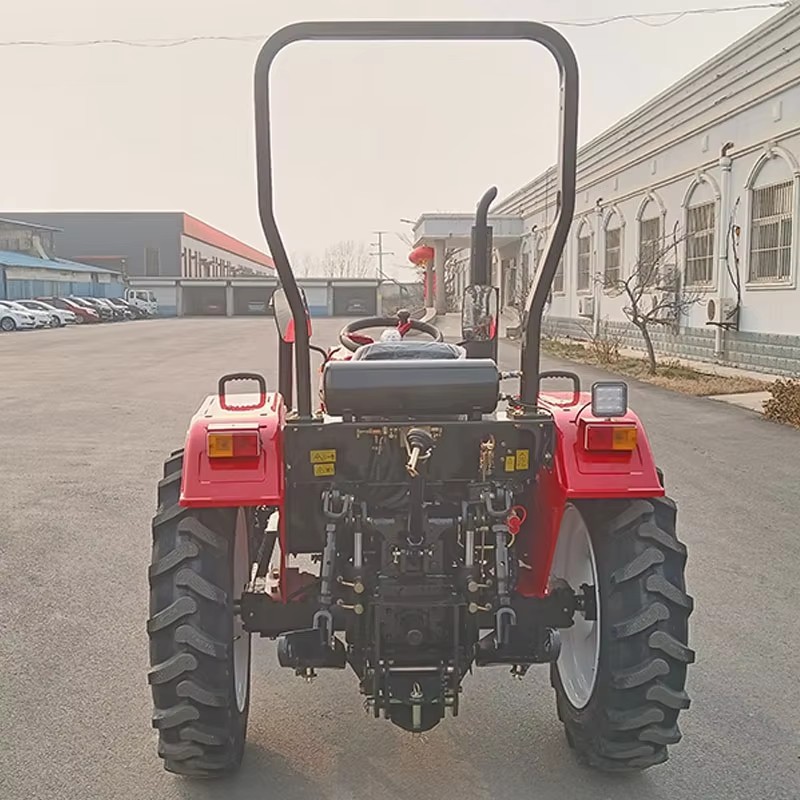

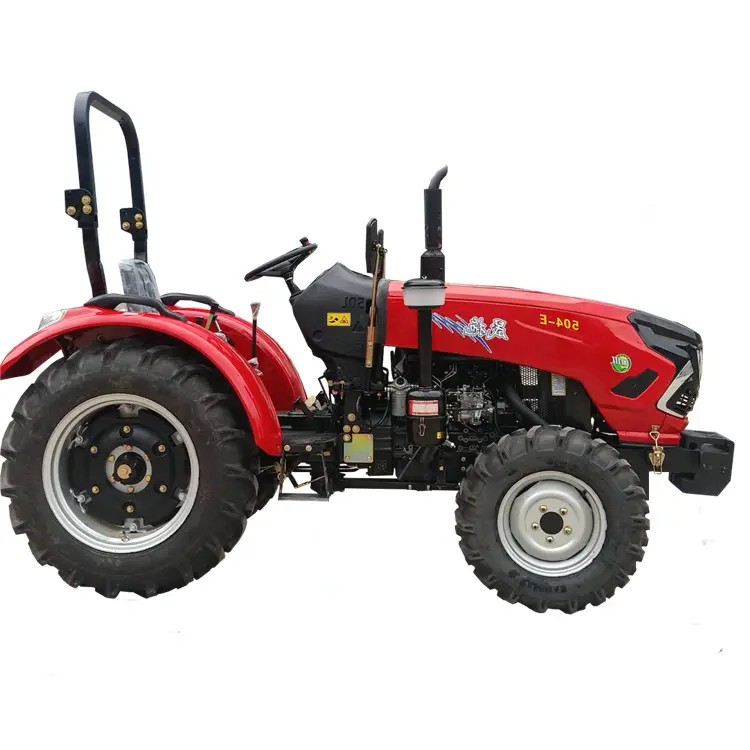

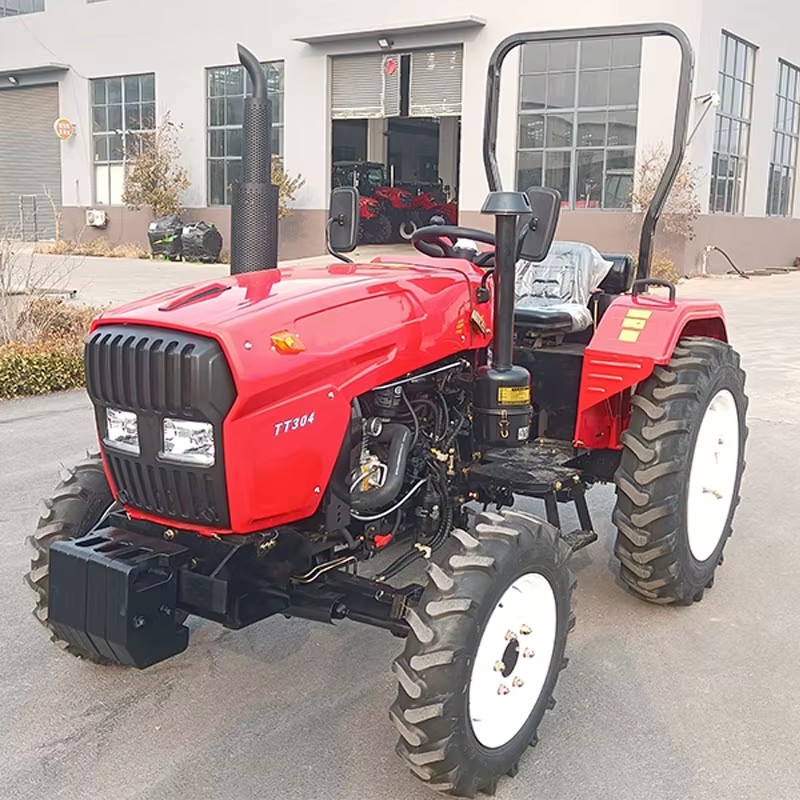

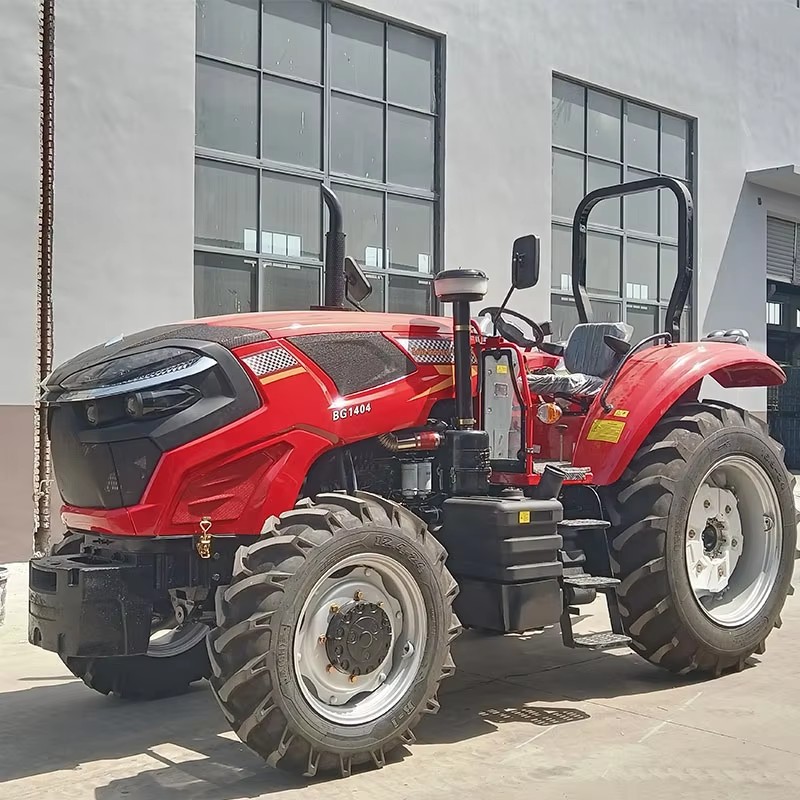

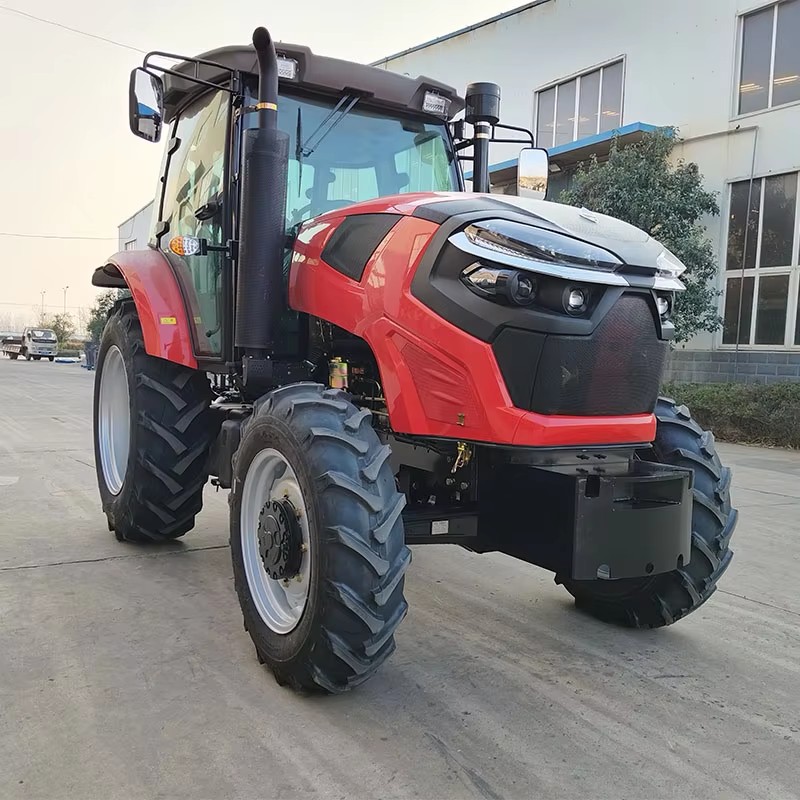

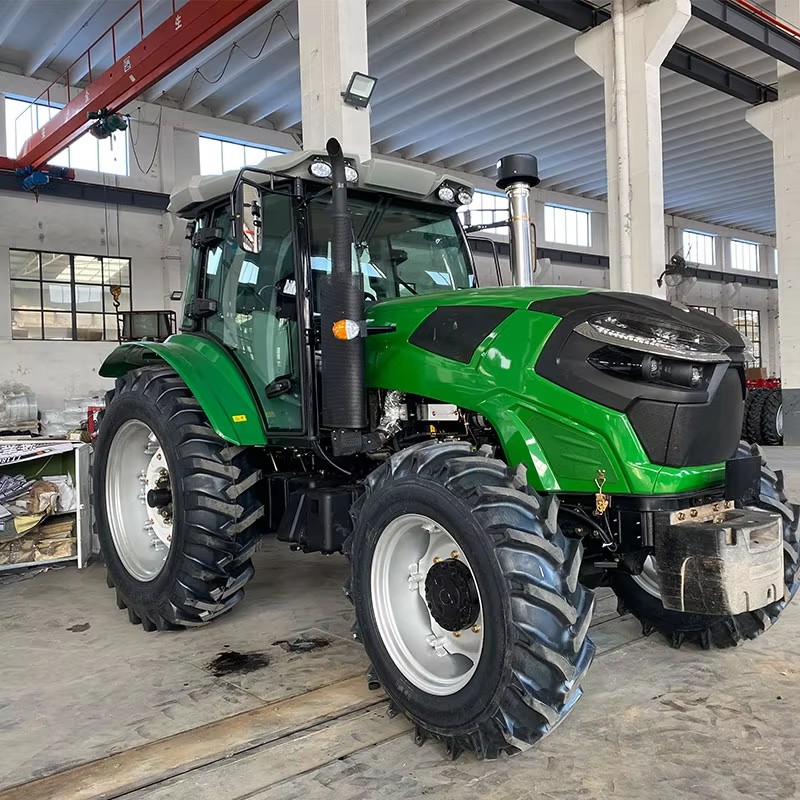

Pictures:
Standard Equipments:
LR6B5-23 Engine,6 Cylinders,16+8 Gear Shift,With Dual-Stage Clutch,Power Steering,Trailer outlet,
protection plate,Tires:11.2-24/16.9-34,hand throttle wire ,4x4 Wheel Drive,3-Point Linkage,
Rear PTO 540/1000, Color follow your need.
120hp 4wd Tractor Specs
| Model | 1204 | ||||
| (mm)Dimensions of Tractor | Length (to front ballast) | 4530 | |||
| Width | 2050-2240 | ||||
| Height (to the exhaust vent) | 2810 | ||||
| Tread | Front Wheel | 1610 | |||
| Rear Wheel | 1620 | ||||
| Axle Base | 2195 | ||||
| Min.Ground Clearance | 405 | ||||
| Structure weight (kg) | 4700 | ||||
| Ballast weight (kg) | Front ballast | 310/320 | |||
| Rear ballast | 440/480 | ||||
| Rated traction force (kN) | 25 | ||||
| Engine | Model | LR6B5-23 | |||
| Type | Vertical,6-Cylinder,Water Cooled and 4-stroke | ||||
| Rated Power(kw) | 88.2kW | ||||
| Rated speed (r/min) | 2300 | ||||
| Fuel | Diesel | ||||
| Tyre | Front Wheel | 11.2-24/(optional 12.4-24) | |||
| Rear Wheel | 16.9-34 | ||||
| Clutch | Dry, Dual-stage clutch | ||||
| Steering | power steering | ||||
| Transmission Type | 16F+8R Shuttle shift/ Creeper gear shift | ||||
| Suspension Type | 3-point links | ||||
| PTO | Type and Rev | Semi-independent Type 760/1000 or540/1000 (optional) | |||
| Spline Size | F35 Rectangle Spline with 6 teeth | ||||
TZ-12 Front End Loader with 4 - in - 1 Bucket Specifications:
| Model | TZ-12 |
| Bucket capacity(m3) | 0.65 |
| Rated Load(Kg) | 1000 |
| Overall dimensions(mm) | 5350×1800×3000 |
| Max. dump height(mm) | 3500 |
| Max. dump distance(mm) | 1100 |
| Bucket rollback angle (degree) | 420 |
| Max. unloading angle (degree) | 460 |
| Max. scraping depth(mm) | 160 |
| Lifting time to pivot pin(s) | 10 |
| Descending time(s) | 10 |
| Recommended Tractor(hp) | 100-125 |
LW-12 Backhoe Specifications:
| Model | LW-12 |
| Bucket Capacity(m3) | 0.06 |
| Bucket Wide(mm) | 500 |
| Max.digging depth(mm) | 3000 |
| Max.digging Radius(mm) | 3986 |
| Max.digging Height(mm) | 4000 |
| Discharging Height(mm) | 2362 |
| Max.digging depth(2ft) Flat bottom(mm) | 2800 |
| Swing Angle(degree) | 160° |
| Bucket Rotation(degree) | 150° |
| Dipper stick Digging Force(Kg) | 1720 |
| Operating pressure(Mpa) | 16 |
Packaging & Delivery:
-2 units inside 1x40'fcl assembled,
-Delivery time: 30 days after receiving your deposit
Company Information
Haipee tractor Group is a High-tech Groups Companies, Which Engage in High-end Agricultural Equipment
Manufacturing, Construction Machinery and High-precision Monitoring Sensors. Haipee tractor Group is Located
at the Foot of the World-famous Jinan. Has Passed ISO9001, CE, SGS, BV, AAA, WIPO Madrid
International Trademark, High-tech Enterprise Certification and Special Equipment Manufacturing License etc.
Haipee tractor are Focused on Development Of the Characteristic
Agricultural Machinery, Like Paddy Fields, Mountains, Hills etc; High-end Intelligence, Like Unmanned Driving
and Beidou Precision Agriculture; also Automation like CVT and Power Gear Shift etc.

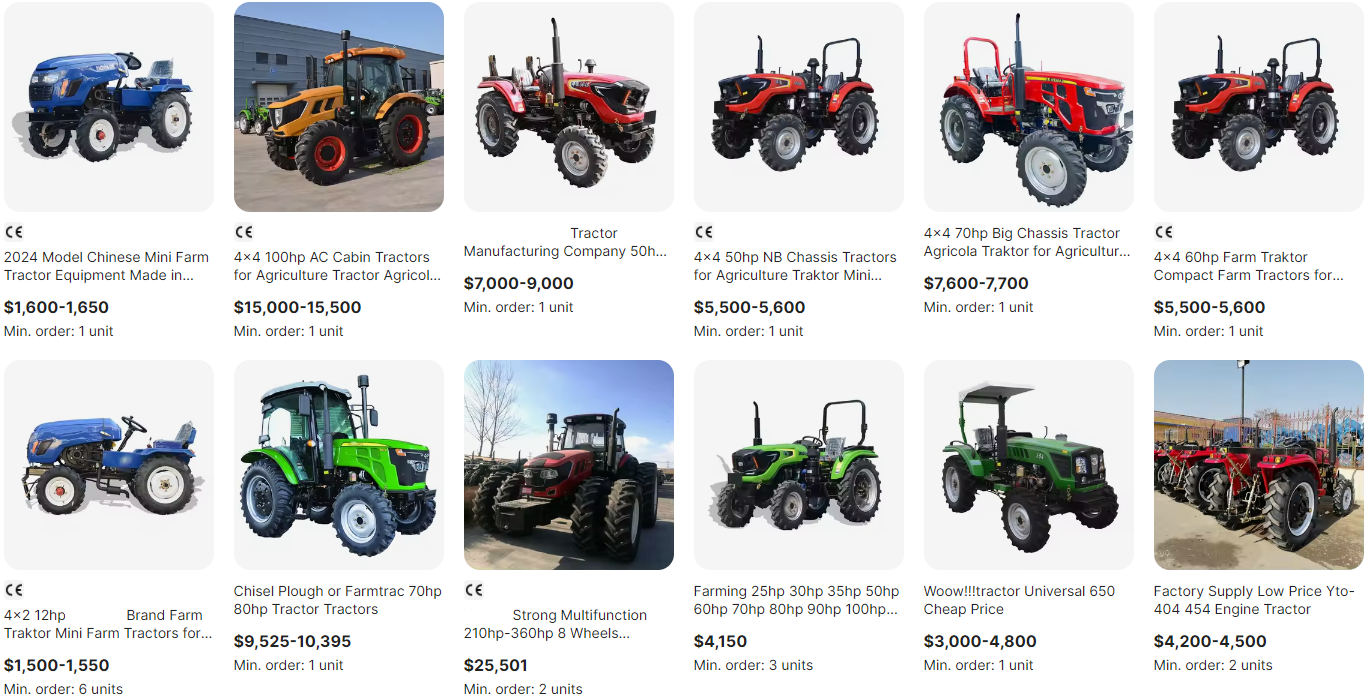

Products range: 15hp-200hp Farm Tractors and Other Farm Machines.
FAQ
1) Manufacturer or Trading Company
We are a leading tractor manufacturer
(2) Delivery Time
Usually 25 days. In peak season,30-40 days
(3)Payment Terms
T/T, L/C, Western Union, Paypal.
(4)Tractor Options

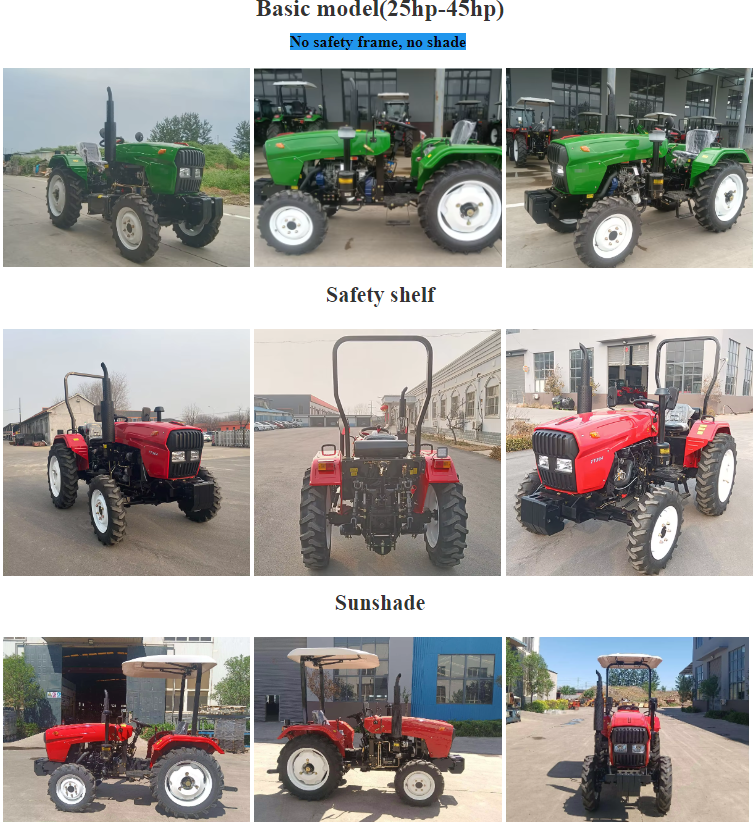

Can be equipped with ROPS, Canopy, Cabin, AC Cabin, Air Brakes, Hydraulic Valve Out, Paddy Tire or as per your requirements.
(5)Tractor Logo
We have our own logo. And we also can put your logo for free.
(6)Tractor Implements
Rotary tiller, disc plow, furrow plow, cultivator, front end Loader, backhoe, Mower, Trailer, Snow Blower or as per your requirements.
